EN IEC 62262 IK08 5 J Impact Hammer of IK Testing

Place of Origin : Shenzhen China

Brand Name : Julixing

Certification : CNAS Test Report

Model Number : LX-IK08

Types of companies : China Wholesale

Incoterms : CFR

Transportation : DHL Express

MOQ : 1 set

Price : Contacts us

Packaging Details : Standard packing

Delivery Time : 15-20 Days

Payment Terms : T/T,Western Union

Supply Ability : 500 Set per month

Contact Now

EN62262 IK08 5J Spring-Operated Impact Hammer Device

IK01	IK02	IK03	IK04	IK05	IK06	IK07	IK08	IK09	IK10
0.14 J	0.2 J	0.35 J	0.5 J	0.7 J	1 J	2 J	5 J	10 J	20 J

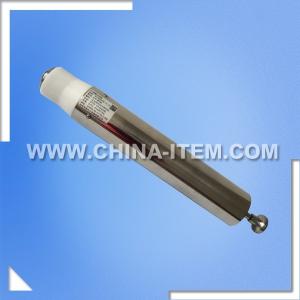

Spring-operated Impact Hammer
Required by many Standards to test the mechanical integrity of product enclosures. After applying the impact with the hammer, the product is examined with accessibility probes to determine access to shock, energy, and injury hazards. Built in exact accordance to IEC60068-2-75 Ehb, EN, UL, CSA and other international Standards.

Product Details

· Body: Includes release mechanism and striking element guide, mass 1250 g, outside diameter 50mm.
· Striking element: With cocking knob and with hammer head, face is polyamide, hemispherical with a radius of 10 mm, hardness of HR85-100, mass 250 g, length approx. 310mm.
· Release Cone: Mass 60 g, release force ≤ 10N.
· Model: CX-T5.0: Impact energy of 5 J± 0, 25 J, mass of striking element is 1.7 kg, hammer heads made of steel with r=25 mm, 10 N release force.
